module Toggle_flip_flop (Q, T, Clk, rst);//三位元計數器
    output 	Q;
    input	T, Clk, rst;
    reg 	Q;
  always @ (posedge Clk, negedge rst)
    if (!rst) Q <= 1'b0;
    else if (T) Q <= !Q;
endmodule

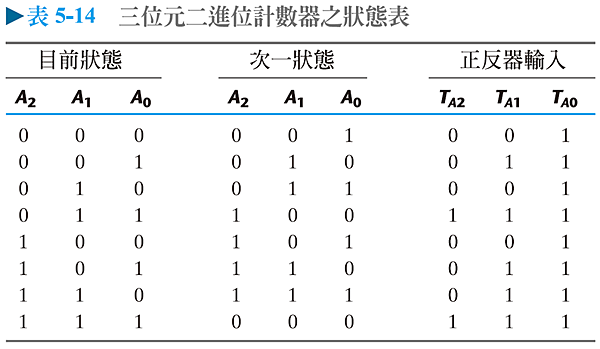

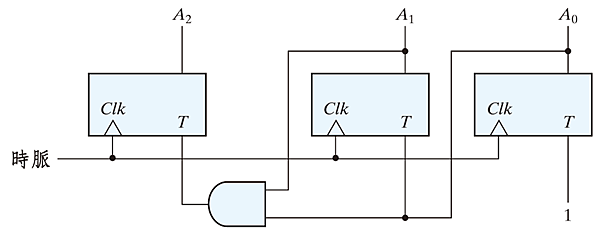

module counter(
    input clock, reset,
    output [2:0] A
    );
    wire T_A1_in, T_A2_in;
    Toggle_flip_flop T_A0(A[0], 1'b1, clock, reset);
    Toggle_flip_flop T_A1(A[1], T_A1_in, clock, reset);
    Toggle_flip_flop T_A2(A[2], T_A2_in, clock, reset);

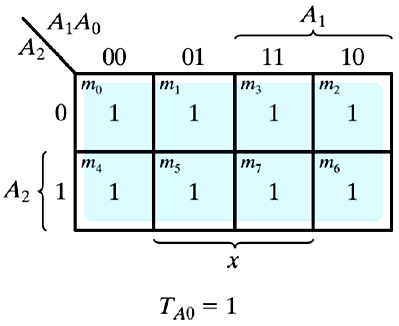

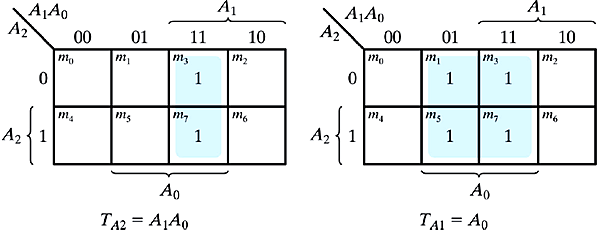

    assign T_A1_in = A[0];
    assign T_A2_in =  A[1] & A[0];
endmodule

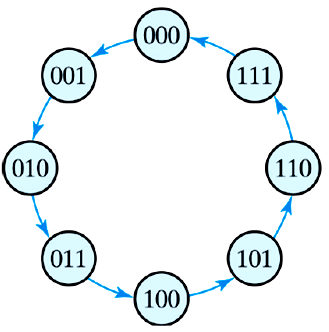

3位元的二進位計數器--實做方法二--desugn bench

module counter_state(
    input clock, reset,
    output [2:0] A
    );
    reg [2: 0]	state;
    parameter    S0 = 3'b000, S1 = 3'b001, S2 = 3'b010, S3 = 3'b011, S4 = 3'b100, S5 = 3'b101, S6 = 3'b110, S7 = 3'b111;
    always @ (posedge clock, negedge reset)
      if (reset == 0) state <= S0;    // Initialize to state S0
      else case (state)
        S0: state <= S1;
        S1: state <= S2;
        S2: state <= S3;
        S3: state <= S4;
        S4: state <= S5;
        S5: state <= S6;
        S6: state <= S7;
        S7: state <= S0;
      endcase
    assign A = state;
  endmodule

3位元的二進位計數器--實做方法一--test bench

module tb_counter;
wire [2:0] t_A, t_state_A;
reg t_clock, t_reset;

counter M1(t_clock, t_reset, t_A);
counter_state M2(t_clock, t_reset, t_state_A);

initial #200 $finish;
always #5 t_clock = ~t_clock;
initial begin
t_reset = 0;
t_clock = 0;
#10 t_reset = 1;
end
endmodule
